AWS IAM Practical Guide: 4 Use Cases for Advanced Configuration and Real-world Implementation (2/2)
Written by Hyojung Yoon
Hello! Welcome back to the SmileShark guide on AWS Identity and Access Management (IAM).
In this edition, we've prepared content that explores how IAM can be utilized in real business situations, along with hands-on practice exercises. We'll look at frequently asked questions and essential know-how that you can apply immediately in the field.
Let's get started!
Context
Practical IAM Setup: Learning Through Use Cases
Let's examine the practical implementation of AWS Identity and Access Management (IAM) through four diverse business scenarios, demonstrating its critical role in enhancing security and operational efficiency in enterprise environments.
1. Strengthening Root Account Security
The root account, often referred to as the "superuser" account, holds unrestricted access to all AWS services and resources. As such, it requires exceptional security measures.
Q: How can I manage the root account securely? What configurations should I implement?
A: To manage the root account securely, it's crucial to enable multi-factor authentication (MFA), remove access keys, and establish a robust password policy. These measures significantly reduce the risk of unauthorized access.
Practice: Root Account Security Configuration
1) Activate MFA(Multi-Factor Authentication)
Log in to the AWS Console > Click on your account name in the top right > Select 'Security credentials'

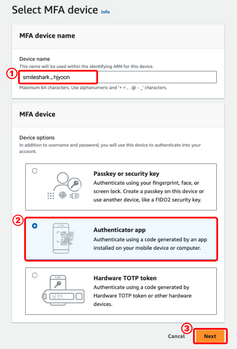

Choose 'Assign MFA' > Enter a device name and select your preferred authentication app > Click 'Next'
After confirming the app used for your virtual MFA device, click 'Show QR code'
Enter the first number generated by the app in 'MFA code 1' > Enter the subsequent number in 'MFA code 2' > Click 'Add MFA'
2) Remove Root Account Access Keys (if present)
Navigate to 'My Security Credentials' > Locate the 'Access keys' section
If you find any existing access keys, choose 'Delete'
3) Implement a Strong Pass word Policy
Go to IAM dashboard > Select 'Account settings'
Confirming the password policy as follows:
Custom > Minimum 14 characters, including a mix of uppercase and lowercase letters, numbers, and special characters
💡 Pro Tip: Reserve the root account for initial setup and critical tasks only. For day-to-day operations, rely on IAM user accounts with appropriate permissions.
2. Configuring IAM for Development Teams
Now, let's look at how to set up IAM to allow your development team secure access to necessary AWS resources.
Q: What's an efficient way to manage AWS resource access permissions for my development team members?
A: An effective approach is to create IAM groups, attach relevant policies to these groups, and then add developers to the appropriate groups. This method enables streamlined permission management.
Practice: Development Team IAM Setup
1) Create an IAM Group and Attach Policies

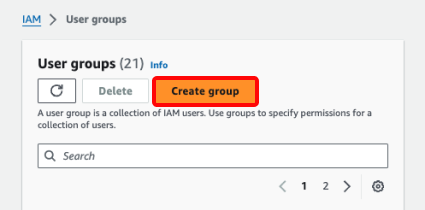

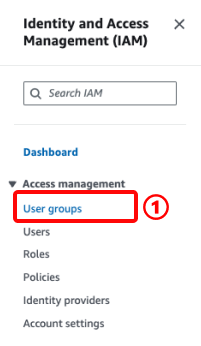

From the IAM dashboard, select 'User groups' and click 'Create group'
Assign a name to the group (e.g., 'DevTeamA')
In the 'Add users to group' section, input usernames and select the newly created 'DevTeamA' group
For attaching permission policies, choose 'AWS managed policies' and search for and add necessary policies
e.g., AmazonS3ReadOnlyAccess, AmazonEC2FullAccess
Click 'Next step' and finalize the group creation
2) Generate Access Keys

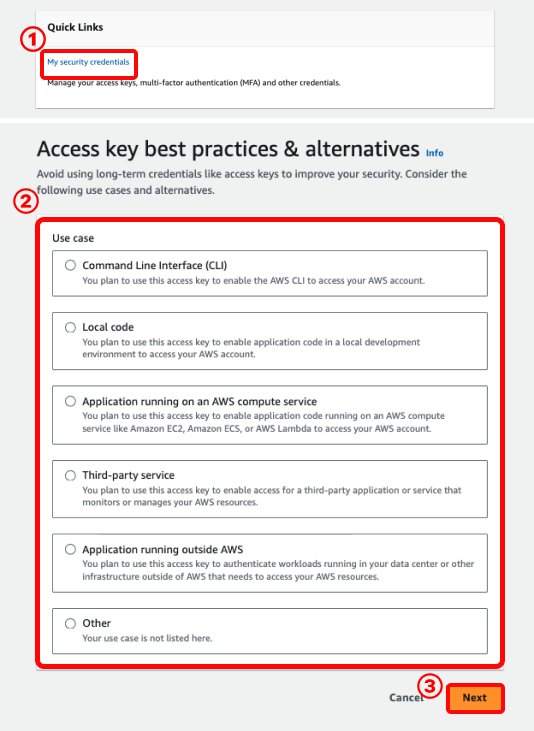

After creating a user, navigate to the 'Security credentials' tab
Select 'Create access key' to generate a new access key
💡 Pro Tip: Make it a practice to rotate access keys regularly and promptly deactivate any unused keys to enhance security.
3. Managing IAM in Multi-Account Environments
Large organizations often utilize multiple AWS accounts. Let's explore effective ways to manage IAM in such complex environments.
Q: We're using multiple AWS accounts. Is there an efficient way to manage them?
A: Absolutely. You can implement centralized management using AWS Organizations and utilize cross-account IAM roles to establish secure access between accounts.
Practice: Setting Up AWS Organizations and Cross-Account Access
1) AWS Organizations Setup
Access the AWS Organizations console
Select 'Create organization' and complete the setup process
2) Establish a Cross-Account Role
Access the IAM console of the target account

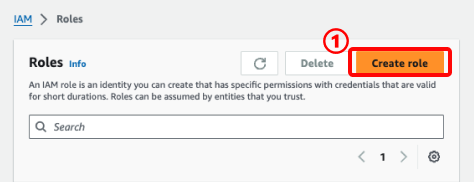

Select 'Roles' and click 'Create role'
Choose 'AWS account' > 'Another AWS account' and input the account ID you wish to grant access
Attach appropriate permission policies (e.g., ReadOnlyAccess)
3) Test Cross-Account Access
Use AWS CLI from the source account
aws sts assume-role --role-arn arn:aws:iam::TARGET_ACCOUNT_ID:role/ROLE_NAME --role-session-name TEST_SESSION4. Managing External Partner Access
There are times when you need to grant temporary AWS resource access to external partners. IAM roles can be particularly useful in such scenarios.
Q: What's the safest method to temporarily grant AWS resource access to an external partner?
A: The most secure approach is to create an IAM role, assign only the minimum necessary permissions to that role, and then issue temporary credentials through AWS Security Token Service (STS).
Practice: Creating an IAM Role for External Partners
1) Create an IAM Role
Sign in to the AWS Management Console and navigate to the IAM service

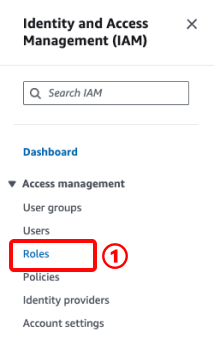

Select 'Roles' and click 'Create role'
Choose 'Another AWS account' and enter the partner's AWS account ID in the 'Account ID' field
2) Attach a Permission Policy
In the 'Attach policies' section, search for and add the necessary policies
For example: AmazonS3ReadOnlyAccess
Provide a role name (e.g., ExternalCollaborateRole)

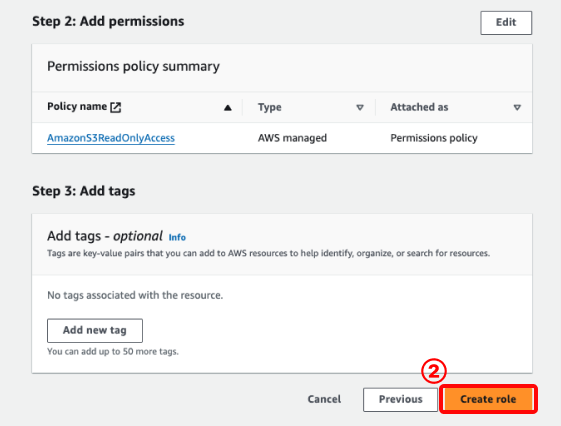

Add 'Tags' if needed, then click 'Review' and click to 'Create roles'
3) Generate Temporary Credentials
In the IAM dashboard, locate and click on the role you just created
Select the 'Trust relationships' tab and click 'Edit trust relationship'
In the JSON policy document, verify that the partner's AWS account ID is correctly set
Use the 'Copy role URL' or 'Send a link to this role' option to generate a URL for accessing the role
4) Provide Temporary Credentials
Securely transmit the generated role URL to your partner
Provide clear instructions on how to use the role and any necessary precautions
💡Pro Tip: You can limit the validity period of temporary credentials by configuring the 'Maximum CLU/API session duration' in the IAM role setting. Additionally, enhance security by minimizing the role's permissions to only what's absolutely necessary.
Results and Effects of IAM Implementation
Implementing the four IAM practices we've discussed can yield significant benefits:
Enhanced Security
Reduced risk of unauthorized access through root account protection
Minimized risk of account compromise through MFA implementation
Overall improvement in security posture by applying the principle of least privilege
Efficient Management
Simplified user management through group-based permission allocation
Centralized multi-account management via AWS Organizations
Flexible resource access management using cross-account roles
Cost Optimization
Prevention of resource misuse by eliminating unnecessary permissions
Reduced duplicate investments through efficient resource sharing
Simplified Compliance and Auditing
Meeting regulatory compliance requirements through granular permission control
Streamlined auditing and tracking of all IAM activities via comprehensive CloudTrail logging
Improved Collaboration
Establishment of a secure collaboration environment with external partners
Support for smooth collaboration through tailored permissions for each project and team
IAM Security Best Practices
Adhering to AWS IAM security best practices can significantly enhance your overall AWS environment security:
Minimize Root Account Usage: Use the root account only for account creation and initial setup. Perform subsequent operations
Enforce a Strong Password Policy: Apply a robust password policy to all IAM users to ensure passwords are not easily guessable.
Implement MFA: Set up multi-factor authentication (MFA) for all user accounts to add an extra layer of security.
Regularly Review Permissions: Periodically review the permissions of IAM users and roles, and remove any unnecessary permissions.
Utilize the Policy Simulator: Use the IAM policy simulator to verify that policies are functioning as intended.
Moninor via CloudTrail: Leverage CloudTrail to monitor IAM activities and track who performed what actions.
IAM Troubleshooting and Monitoring
Common IAM Errors and Their Solutions
1. Access Denied Error
Cause: Occurs when a user or role lacks the necessary permissions.
Solution: Review the policy of the user or role and add the required permissions.
2. InvalidClientTokenId Error
Cause: Happens when an access key is incorrect or has expired.
Solution: Verify the access key in the IAM console and generate a new key if necessary.
3. MalfomedPolicyDocument Error
Cause: Arises when the JSON format of an IAM policy document is incorrect.
Solution: Use a JSON validation tool to check and correct the policy document format.
Monitoring IAM Activities with CloudTrail
Navigate to the CloudTrail service in the AWS Management Console.
Click 'Create trail' to set up a new trail.
Provide a trail name and decide whether to apply it to all regions.
Choose an existing S3 bucket or create a new one to specify where logs will be stored.
Optionally, you can configure sending logs to CloudWatch Logs.
CloudTrail allows you to monitor IAM activities in detail and respond swiftly to any security incidents.
Frequently Asked Questions (FAQ)
Q: What's the key difference between IAM users and IAM roles?
A: IAM users are permanent identities that can continuously access AWS resources. They're typically assigned to specific individuals or applications. On the other hand, IAM roles are sets of permissions that can be assumed temporarily when needed. Roles are particularly useful when users need temporary access to AWS resources for specific tasks.
Q: How often should we rotate access keys?
A: AWS recommends rotating access keys every 90 days to enhance security. However, depending on your organization's security policy, you might choose to rotate them more frequently. Regular key rotation helps mitigate long-term security risks.
Q: What should I be mindful of when writing IAM policies?
A: The most critical principle when crafting IAM policies is to adhere to the 'principle of least privilege'. This means granting only the minimum permissions necessary to perform required tasks. It's also advisable to minimize the use of wildcards (*) and instead specify concrete resource ARNs whenever possible.
Q: What advantages does using AWS Organizations offer?
A: AWS Organizations allows for centralized management of multiple AWS accounts. This enables automated account creation, group-based account management, and policy-based integrated management. These features allow for more systematic and efficient operation of large-scale AWS environments.
Q: How should I handle a lost MFA device?
A: If you lose the MFA device for your root account, contact AWS Customer Support and explain the situation. The support team can deactivate MFA after going through an identity verification process. You can then register a new MFA device.
For IAM accounts, you can access with the root account or an IAM account with administrator permissions to remove the MFA device. After that, you can register a new MFA device.
Conclusion
Throughout this AWS IAM practical guide, we've explored how IAM can be effectively utilized in real-world business scenarios.
From enhancing root account security to practicing various scenarios, we've covered practical ways to leverage IAM.
IAM stands as one of the most critical security services in the AWS ecosystem. When properly configured, IAM enables secure protection of AWS resources and efficient access control. By applying the best practices outlined in this guide, you can significantly enhance the overall security posture of your AWS environment.
Remember, security isn't a one-time task but an ongoing process. Regularly review your IAM settings, stay updated with the latest security recommendations, and strive to maintain a secure and efficient AWS environment.
